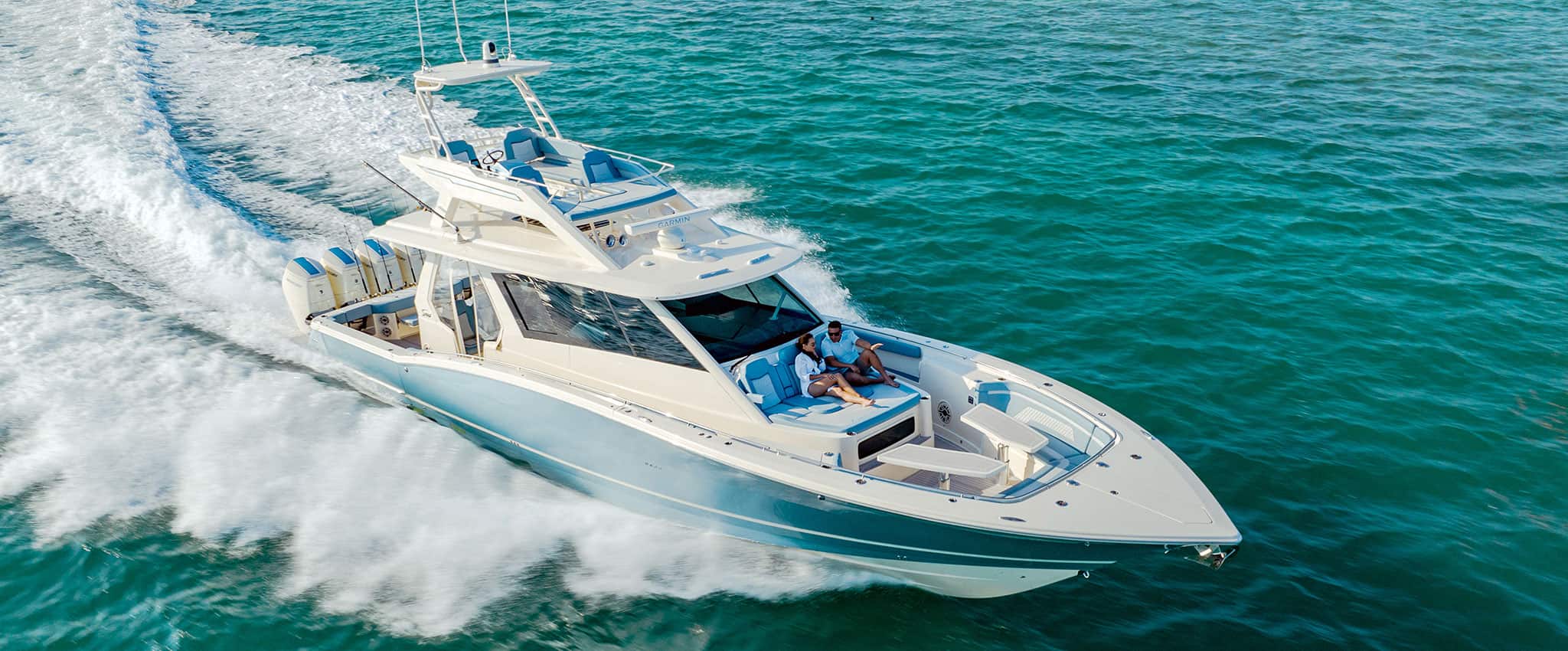

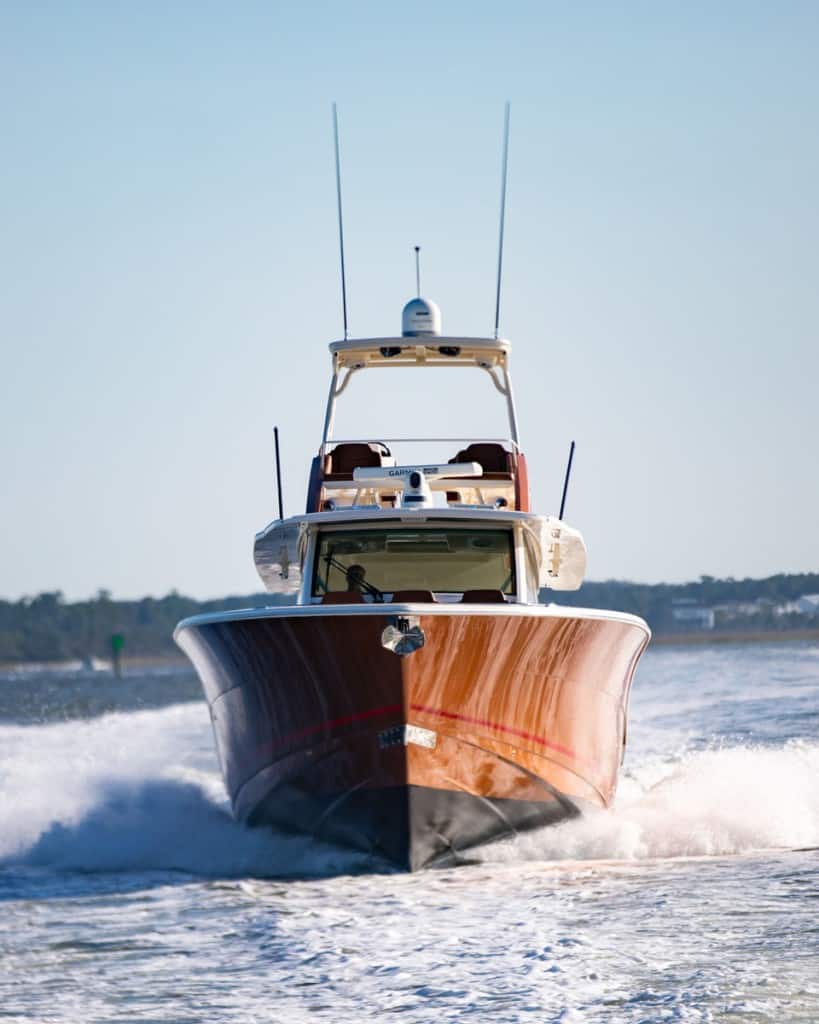

530 LXF · S-Class · specified in Dubai

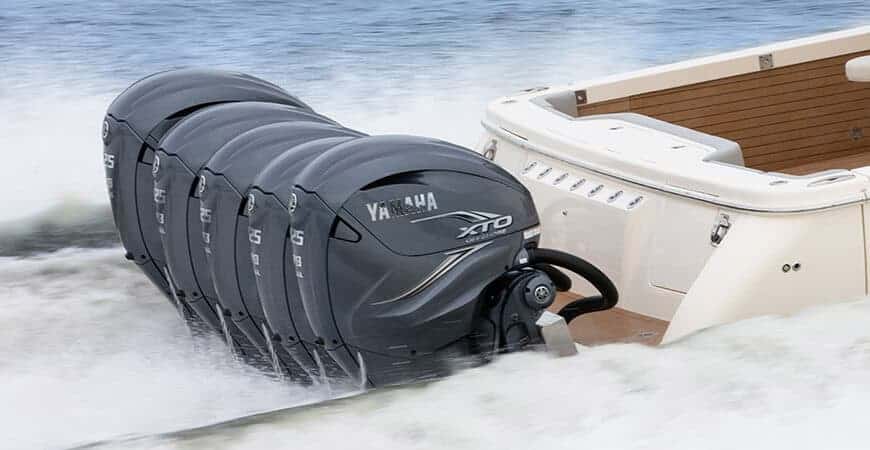

53′5″. Dual hydraulic beaches. 875 gallons. Quad or quint outboards to 2,400 hp. Official GCC desk.
Factory current · official GCC desk
Double-stepped carbon / E-glass hull. Beaches that open the aft deck to 17′6″. A cabin with 6′9″ headroom.
| Specifications · scoutboats.com/model/530-lxf | |
|---|---|
| Length overall | 53′5″ (16.28 m) |
| Beam | 14′8″ (4.47 m) · ~17′6″ with aft beaches deployed |
| Draft, approx. | 31″ (0.78 m) |
| Deadrise | 18° |
| Bridge clearance to hardtop | 9′8″ (2.95 m) · no tower |
| Cabin headroom | 6′9¼″ (2.06 m) |
| Dry weight without engines | 27,980 lbs (12,692 kg) · epoxy-infused carbon / E-glass |
| Dry weight, quad Mercury 600 | 33,020 lbs (14,978 kg) approx. |
| Maximum horsepower | 2,400 hp (1,791 kW) |
| Minimum horsepower | 1,700 hp (1,268 kW) |
| Fuel | 875 gal (3,312 L) |
| Diesel (generator) | 80 gal (303 L) |
| Freshwater | 100 gal (379 L) |
| Black / grey water | 40 gal + 40 gal (151 L each) |
| Cockpit baitwells | (2) × 30 gal (114 L each) |
Older performance bulletins still print 53′0″ / 14′6″. The current factory model page is 53′5″ / 14′8″. Confirm on the Summerville sheet. Factory 530 LXF page

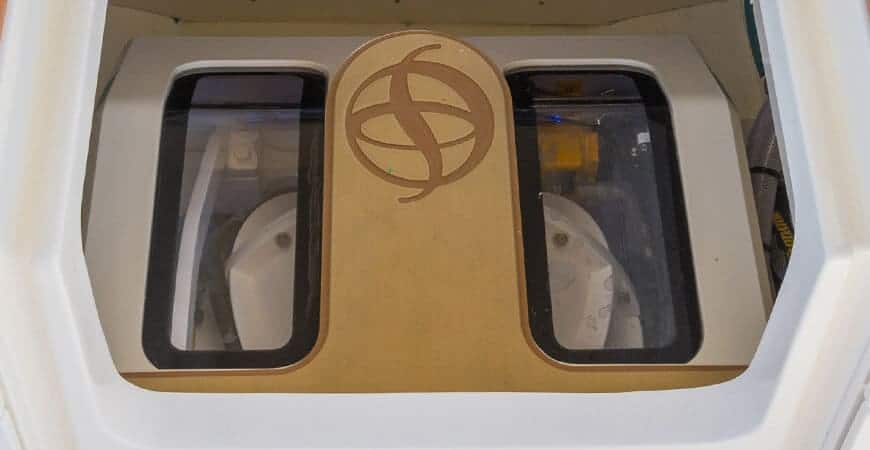

Tower, gyro and glass package stay on the Dubai sheet.

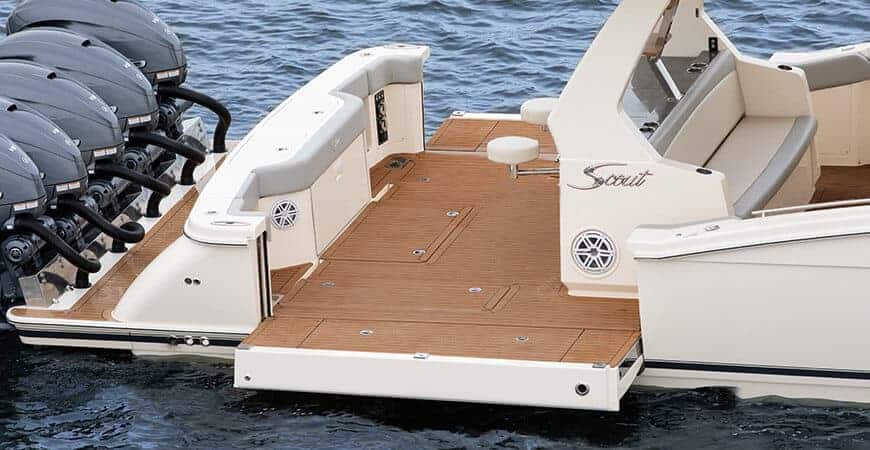

Beaches
Port and starboard hydraulic platforms. The aft deck opens onto the water.

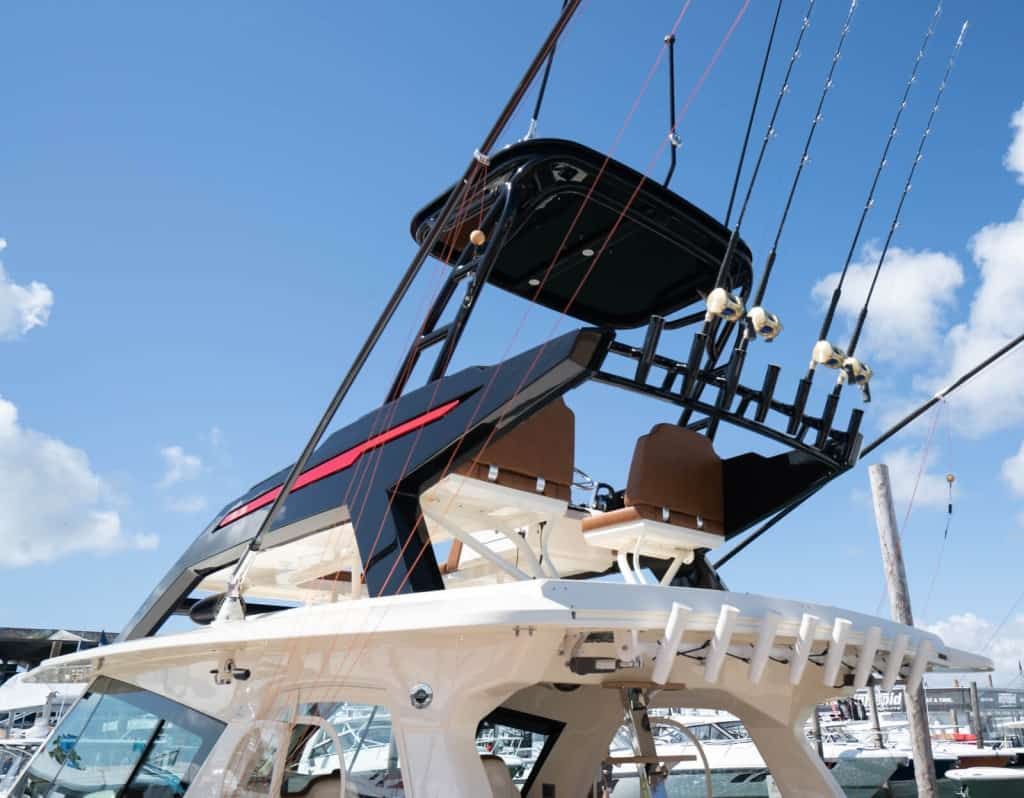

Fish
Twin 30-gallon wells. Launchers. Transom doors both sides.

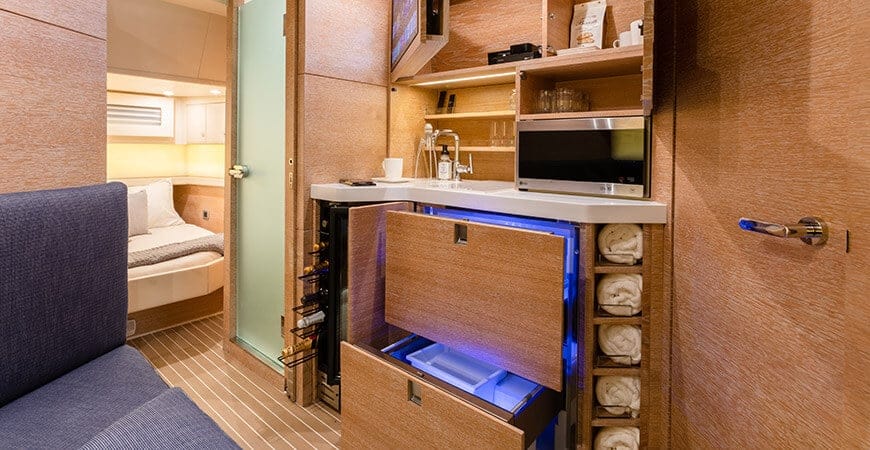

Below
A cabin that works overnight. HVAC on the factory systems list.
The desk
Specified from Dubai. Delivered to any major port.
